Moisture meter

  • Dor Yang DSH-50A Halogen Moisture Analyzer

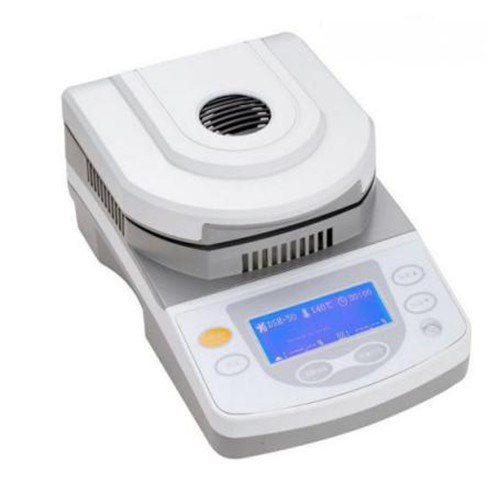

Dor Yang DSH-50A Halogen Moisture Analyzer

Dor Yang DSH-50A Halogen Moisture Analyzer

  • Product description: Halogen Moisture Meter
  • INQUIRY

1.Product characteristics:

1.1 The super large resolution backlit dot matrix LCD is easy to operate in the dark and is more comfortable in vision.

1.2 Keypad Keyboard makes operation more convenient.

1.3 High precision insulation sensor, data acquisition temperature reliable.

1.4 The halogen lamp is used for heating and drying, and the temperature is fast and the test time is short.

2.Function :

2.1 In the testing process, the drying state can be directly recognized and the time of speculation is concluded.

2.2 It has the function of automatic peeling and can be measured continuously in real time. It can also be measured accurately by zero drift correction.

2.3 Built in R232C output interface, can be connected to computers, printers and other peripherals.

3.Application :

Used for rapid determination of free water in chemical raw materials, cereals, minerals, biological products, food, pharmaceutical raw materials, paper, textile raw materials and other samples.

4.Technical parameters:

Model

Dor Yang DSH-50A

Max Measurement Weight

50 g

Readability

1mg

Repeatability with (3g Sample )

0.3%

Recommended sample weight

3~10g

Heating time

1~99 min interval 1 min

Heating program

Standard

Communication

RS232

Switch-off criteria

Timed; Automatic

Drying Temperature

50-180

Display mode

Moisture content, Solid content ;Weight ;Date and so on

Pan size

100 mm

Heating source

Halogen lamp

Weight

6Kg

Printer

Thermal printer
